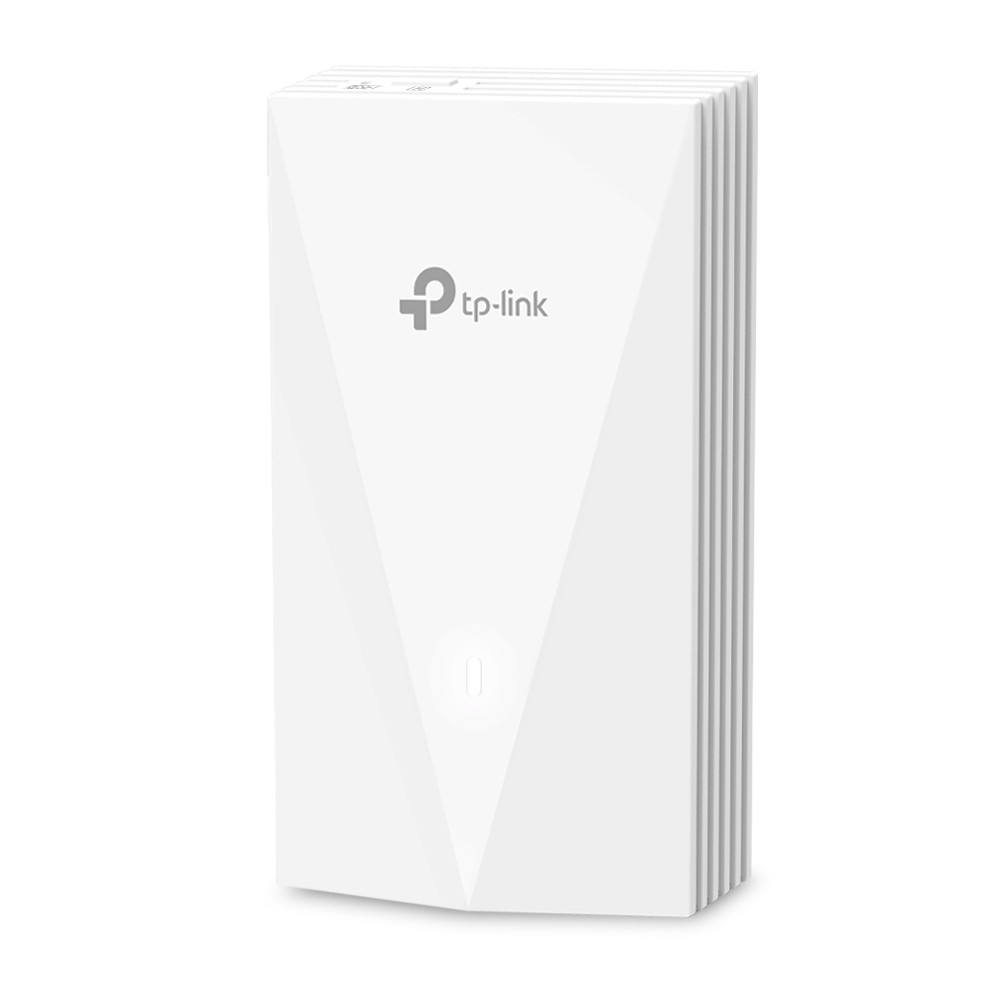

TP-Link EAP655-Wall AX3000 Wall Plate Wi-Fi 6 Access Point

The TP-Link EAP655-Wall is a high-performance AX3000 Wi-Fi 6 wall plate access point designed for premium in-room wireless experiences in demanding environments . With combined speeds of up to 3 Gbps—2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band—it delivers exceptional performance for high-density applications such as hotels, hospitals, and offices .

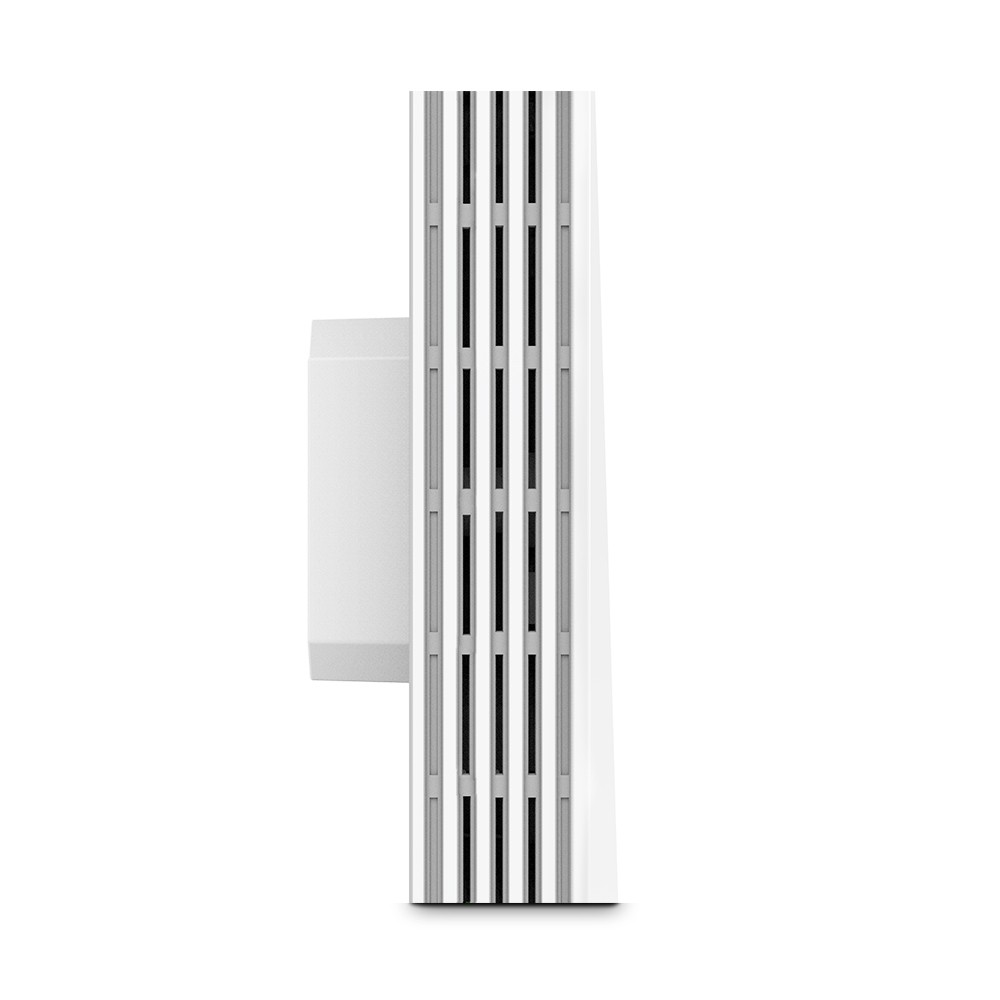

The ultra-slim design (42.6 mm deep) integrates discreetly into any room, while four Gigabit Ethernet ports (1 uplink, 3 downlink) provide wired connectivity with one downlink port supporting PoE passthrough . The EAP655-Wall supports advanced features including Omada Mesh, seamless roaming, and WPA3 encryption .

Key Features

AX3000 Wi-Fi 6 Speeds
Dual-band Wi-Fi 6 delivers combined speeds up to 3 Gbps: 2402 Mbps on the 5 GHz band for ultra-fast performance and 574 Mbps on the 2.4 GHz band for extended coverage .

Four Gigabit Ethernet Ports with PoE Passthrough
1× uplink port and 3× downlink ports for connecting wired devices. One downlink port supports PoE passthrough to power devices such as VoIP phones without extra electrical cables .

OFDMA & MU-MIMO Technology
OFDMA and MU-MIMO deliver data to multiple devices simultaneously with less lag, greatly improving multi-user efficiency in high-density environments .

Omada SDN Integration
Centralized cloud management via Omada SDN platform with Zero-Touch Provisioning (ZTP), intelligent monitoring, and remote configuration .

Omada Mesh Technology
Enables wireless connectivity between access points for extended range without additional cabling .

Seamless Roaming (802.11k/v/r)
Ensures uninterrupted streaming when moving between access points, with automatic client handoff to the AP with optimal signal strength .

Complete In-Room WiFi Coverage
Guarantees strong signals and corner-to-corner WiFi coverage in each room, providing guests with their own private, fast Wi-Fi network .

WPA3 Enterprise Security
Supports the latest WPA3 encryption standard for enhanced security in enterprise environments, along with 802.1X authentication and captive portal options .

Technical Specifications

• Model: EAP655-Wall

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)

• Wireless Speeds: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

• Ports: 1× Gigabit uplink, 3× Gigabit downlink (1 supports PoE passthrough)

• Antennas: 2.4 GHz: 2× 3 dBi, 5 GHz: 2× 5 dBi

• Power Supply: 802.3af/at PoE

• PoE Passthrough: Up to 10.5W (requires 802.3at PoE+ input)

• Dimensions: 143 × 86 × 42.6 mm

• Mounting: Wall Plate (compatible with 86mm/EU/US junction boxes)

• Operating Temperature: 0°C to 40°C

• Management: Omada SDN (cloud/hardware/software controller)

• Warranty: 1 year

What’s in the Box:

• TP-Link EAP655-Wall Access Point

• Mounting Kits

• Installation Guide
