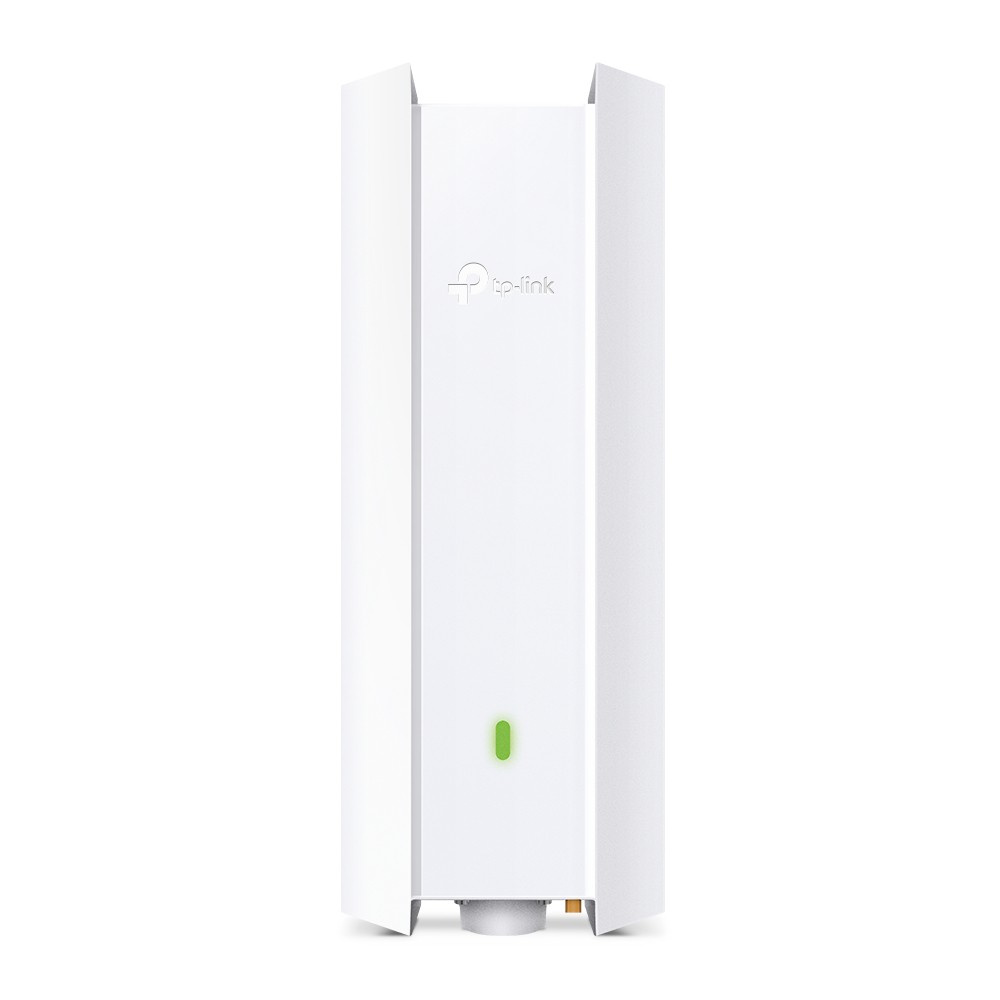

TP-Link EAP650-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

The TP-Link EAP650-Outdoor is a high-performance AX3000 Wi-Fi 6 access point designed for the most demanding outdoor environments . With combined speeds of up to 3 Gbps—2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band—it delivers exceptional wireless performance for large outdoor areas such as swimming pools, amphitheaters, parks, and school playgrounds .

The EAP650-Outdoor features an IP67-rated weatherproof enclosure, providing complete protection against dust and temporary immersion in water . With HE160 support, it doubles the data transmitted during peak times on a single stream, while professional smart antennas with high-power amplifiers ensure long-range coverage up to 300 meters on 5 GHz .

Key Features

AX3000 Wi-Fi 6 Speeds with HE160
Dual-band Wi-Fi 6 delivers combined speeds up to 3 Gbps: 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. HE160 (160 MHz channel) doubles data at peak transmission times on a single stream, providing 177% faster speeds than standard Wi-Fi 6 with HE80 .

IP67 Weatherproof Enclosure
Totally protected against dust ingress and immersion in water up to 1 meter depth for 30 minutes. 6 kV lightning protection and 15 kV ESD protection ensure reliability in extreme outdoor conditions .

Smart Antenna Technology
TP-Link’s proprietary Smart Antenna technology features horizontally and vertically polarized antennas with intelligent algorithms that automatically select the optimal antennas for peak WiFi performance in outdoor environments .

Long-Range Coverage
High-power amplifiers and professional antennas provide up to 200+ meters coverage on 2.4 GHz and 300+ meters on 5 GHz, ensuring reliable connectivity across large outdoor areas .

OFDMA & MU-MIMO
OFDMA and MU-MIMO technologies greatly improve multi-user efficiency, providing simultaneous connections for dozens of clients in large open areas with lower latency .

PoE+ Powered
Supports both 802.3at PoE+ and 48V Passive PoE (adapter included) for flexible installation options. Can be powered by a PoE+ switch or the included PoE adapter .

Omada Mesh Technology
Enables wireless connectivity between access points for extended range without additional cabling, making deployments more flexible and convenient for hard-to-wire areas .

Omada SDN Integration
Centralized cloud management via Omada SDN platform with Zero-Touch Provisioning (ZTP), intelligent monitoring, and remote configuration from anywhere .

Seamless Roaming (802.11k/v/r)
Ensures uninterrupted streaming when moving between access points, with automatic client handoff to the AP with optimal signal strength .

Up to 250 Concurrent Clients
Supports up to 250+ concurrent clients, ideal for high-density outdoor environments such as stadiums, parks, and public venues .

5-Year Warranty
Backed by TP-Link’s comprehensive 5-year warranty for peace of mind and long-term reliability .

Technical Specifications

• Model: EAP650-Outdoor

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)

• Wireless Speeds: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

• Ports: 1 x Gigabit Ethernet (802.3at PoE+)

• Antennas: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi

• Weatherproof Rating: IP67

• Lightning Protection: 6 kV, ESD: 15 kV

• Operating Temperature: -30°C to 70°C

• Mounting: Pole / Wall (kits included)

• Management: Omada SDN (cloud/hardware/software controller)

• Warranty: 5 years

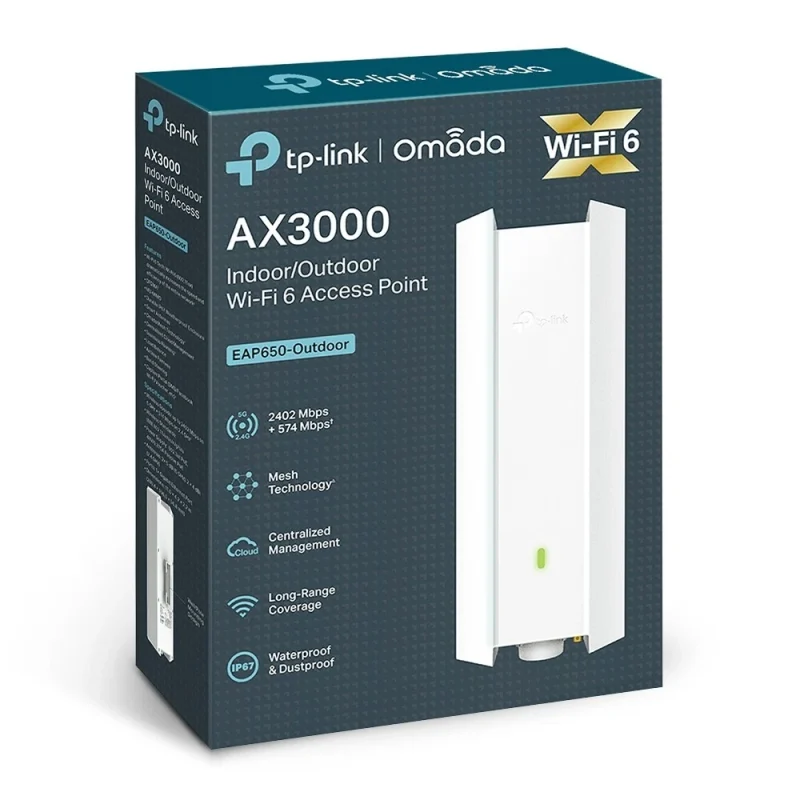

What’s in the Box:

• TP-Link EAP650-Outdoor Access Point

• Passive PoE Adapter

• Mounting Kits (Pole/Wall)

• Waterproof Kit

• Installation Guide
