TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

The TP-Link EAP235-Wall is a discreet, ultra-thin wall plate access point designed for hotel rooms, hospital suites, offices, and dormitories . With a thickness of only 20 mm (0.8 inches), it blends seamlessly into any environment, delivering powerful dual-band Wi-Fi without clashing with room décor .

The access point provides fast AC1200 dual-band Wi-Fi with combined speeds of up to 1,167 Mbps—867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band . Four Gigabit Ethernet ports (1 uplink, 3 downlink) allow wired devices to be connected, with one downlink port supporting PoE passthrough to power devices such as VoIP phones .

Key Features

AC1200 Dual-Band Wi-Fi
Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO technology for efficient multi-client performance .

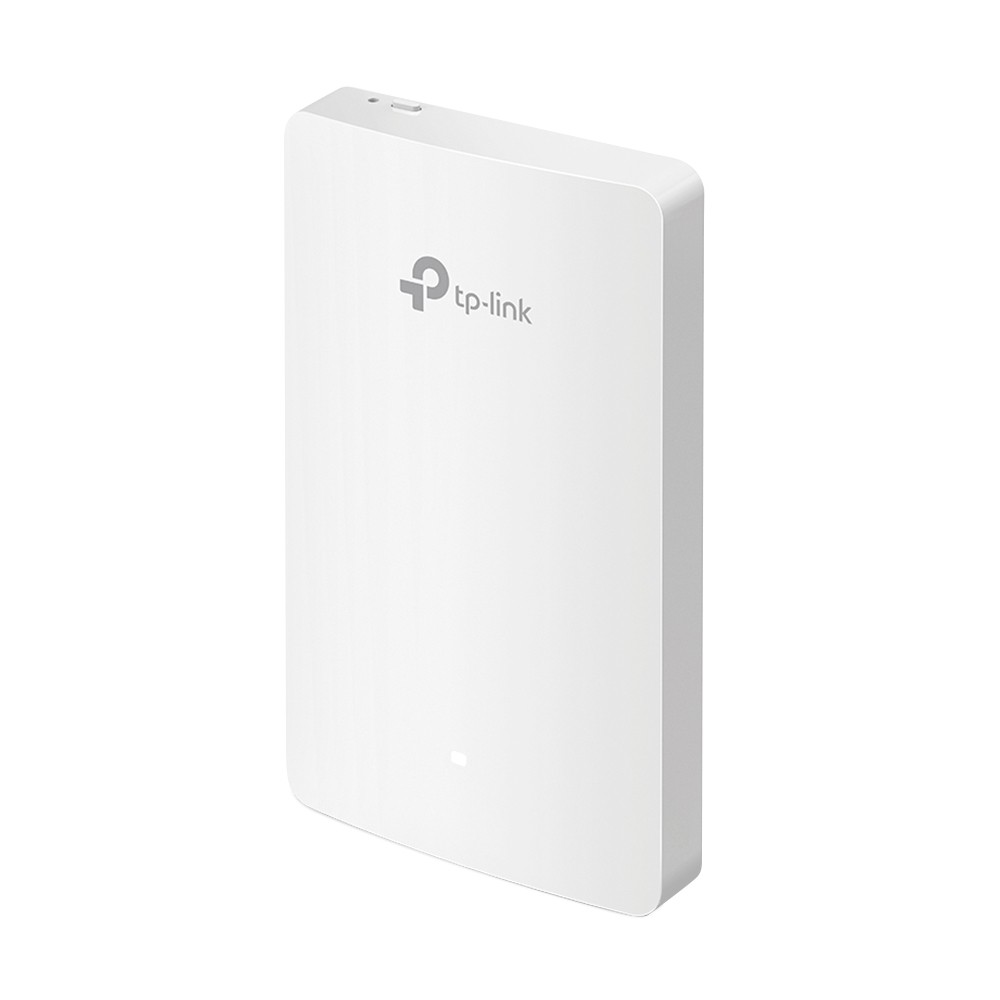

Ultra-Thin Wall Plate Design
At just 20 mm (0.8 inches) thick, it’s one of the thinnest wall plate APs available. The sleek, minimalist appearance blends into room décor and does not interfere with furniture placement .

Four Gigabit Ethernet Ports

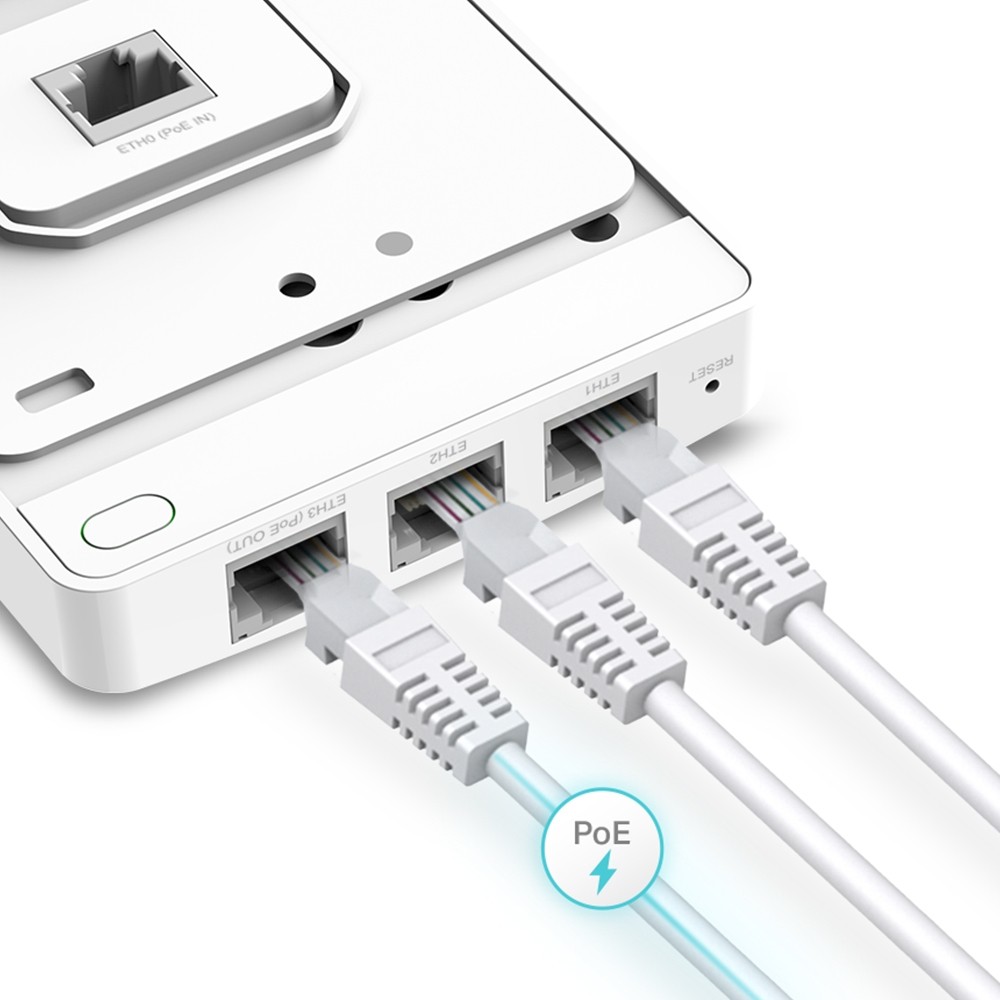

1× uplink port and 3× downlink ports for connecting wired devices such as VoIP phones, printers, and computers. One downlink port supports PoE passthrough, providing power to wired devices without extra electrical cables .

Easy Installation & PoE Support
Compatible with 86 mm, EU, and US standard junction boxes. Powered by 802.3af/at PoE, requiring only a single Ethernet cable for both power and data .

Omada SDN Integration
Centralized cloud management via Omada SDN platform with Zero-Touch Provisioning (ZTP), intelligent monitoring, and remote configuration .

Complete In-Room WiFi Coverage
Guarantees strong signals and corner-to-corner WiFi coverage in each room, providing guests with their own private, fast Wi-Fi network .

Up to 16 SSIDs
Supports up to 16 SSIDs (8 per band) for creating multiple wireless networks with separate security settings and VLAN tags .

Secure Guest Network
Multiple authentication options including captive portal, SMS, voucher, and RADIUS authentication ensure secure and convenient guest access .

Technical Specifications

• Model: EAP235-Wall

• Wireless Standards: IEEE 802.11ac/n/g/b/a

• Wireless Speeds: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

• Ports: 1× Gigabit uplink, 3× Gigabit downlink (1 supports PoE passthrough)

• Antennas: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 4 dBi

• Power Supply: 802.3af/at PoE

• PoE Passthrough: Up to 13W (requires 802.3at PoE+ input)

• Dimensions: 143 × 86 × 20 mm

• Mounting: Wall Plate (compatible with 86mm/EU/US junction boxes)

• Operating Temperature: 0°C to 40°C

• Management: Omada SDN (cloud/hardware/software controller)

• Warranty: 1 year

What’s in the Box:

• TP-Link EAP235-Wall Access Point

• Mounting Screws

• Installation Guide
