UGREEN Cat6 UTP Ethernet Cable – NW102 Series

The UGREEN NW102 Cat6 UTP Ethernet Cable is a high-performance network patch cord designed for reliable Gigabit Ethernet connections in home, office, and gaming environments. With data transfer speeds up to 1000Mbps and a bandwidth of 250MHz, this cable supports demanding applications like 4K streaming, online gaming, and large file transfers .

The cable features gold-plated RJ45 connectors that resist corrosion and ensure stable signal transmission. The 26AWG stranded copper-clad aluminum conductors provide flexibility while maintaining signal integrity, and the snagless PVC jacket protects the connector clip during installation . Available in multiple lengths from 1m to 15m, the NW102 series offers a solution for every networking need.

Key Features

Gigabit Ethernet Performance
Supports 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T standards . Data transfer speeds up to 1000Mbps for fast, reliable connections. 250MHz channel bandwidth for smooth data, voice, and video transmission .

Cat6 UTP Construction
Unshielded Twisted Pair (UTP) design with 8-core twisted-pair configuration reduces crosstalk and electromagnetic interference . Round cable type with 6mm outer diameter for durability and flexibility .

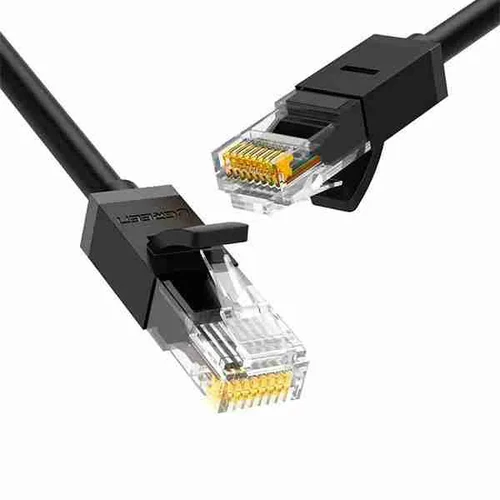

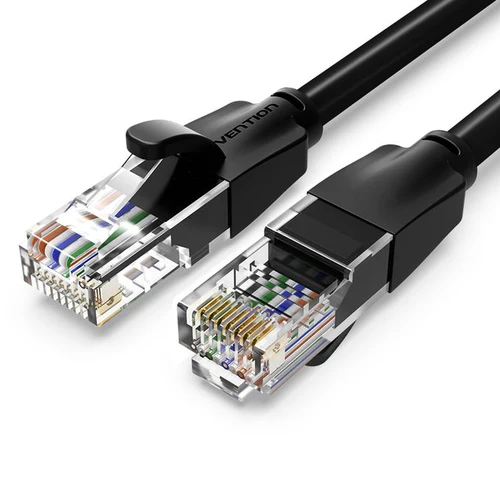

Premium Gold-Plated Connectors
RJ45 connectors with gold-plated contacts for corrosion resistance and optimal signal transmission . Snagless design protects the locking clip during installation and removal .

Flexible 26AWG Stranded Conductors
26AWG stranded copper-clad aluminum (CCA) conductors provide flexibility for routing in tight spaces . Durable PVC jacket withstands regular use and environmental factors .

Universal Compatibility
Compatible with routers, switches, modems, PCs, laptops, gaming consoles (Xbox, PS3/4/5), printers, and smart TVs . Ideal for home networking, office workstations, and gaming setups.

Available Lengths & Pricing

Packaging & Warranty
Cables from 1m to 15m are packaged in Al-foil bags to protect against oxidation and electromagnetic interference during storage . Backed by UGREEN’s 1-year manufacturer’s warranty .

Technical Specifications

• Model: NW102 series (20159, 60545, 20160, 20161, 20162, 20163, 20164, 20165)

• Category: Cat6

• Cable Type: UTP (Unshielded Twisted Pair)

• Connectors: RJ45 Male to RJ45 Male

• Conductor: 26AWG copper-clad aluminum, stranded

• Jacket Material: PVC

• Data Transfer Rate: Up to 1000Mbps (1Gbps)

• Bandwidth: 250MHz

• Outer Diameter: 6mm

• Connector Plating: Gold-plated

• Color: Black

• Wiring Standard: T568B

• Warranty: 1 year
